CAD Services UK

CAD Drafting Services & Technical Drawing

Factory Design & Commercial Layouts

Paul Turton CAD Engineer

CAD Services. CAD Drafting

I am happy to visit you on site, set up a full CAD system & work with yourself, your engineers or factory managers.

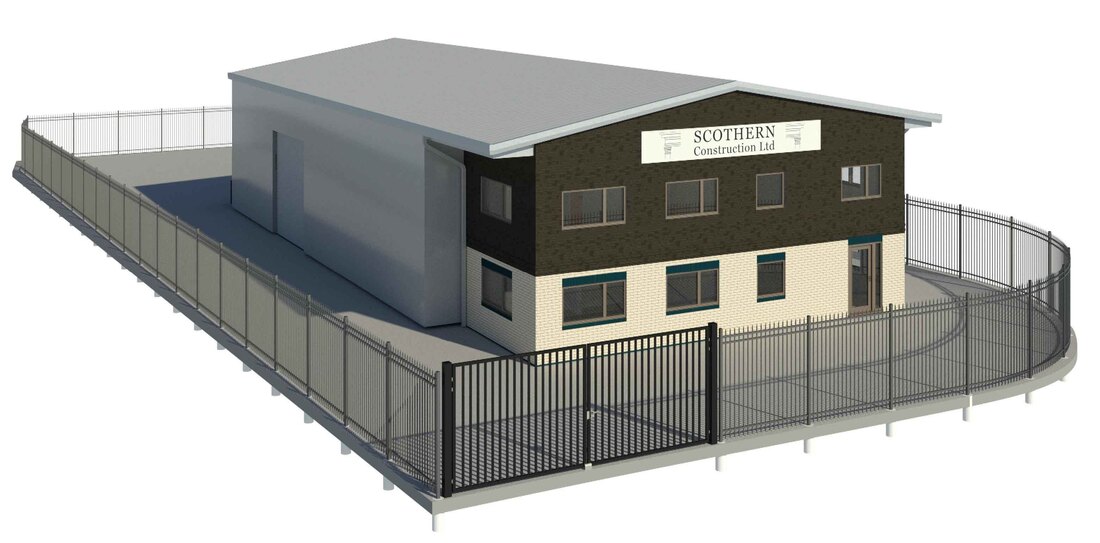

Small Commercial Units

Design your own layout within the footprint of any shaped commercial building or portal frame, either before its built or retrospectively from existing drawings or a site survey.

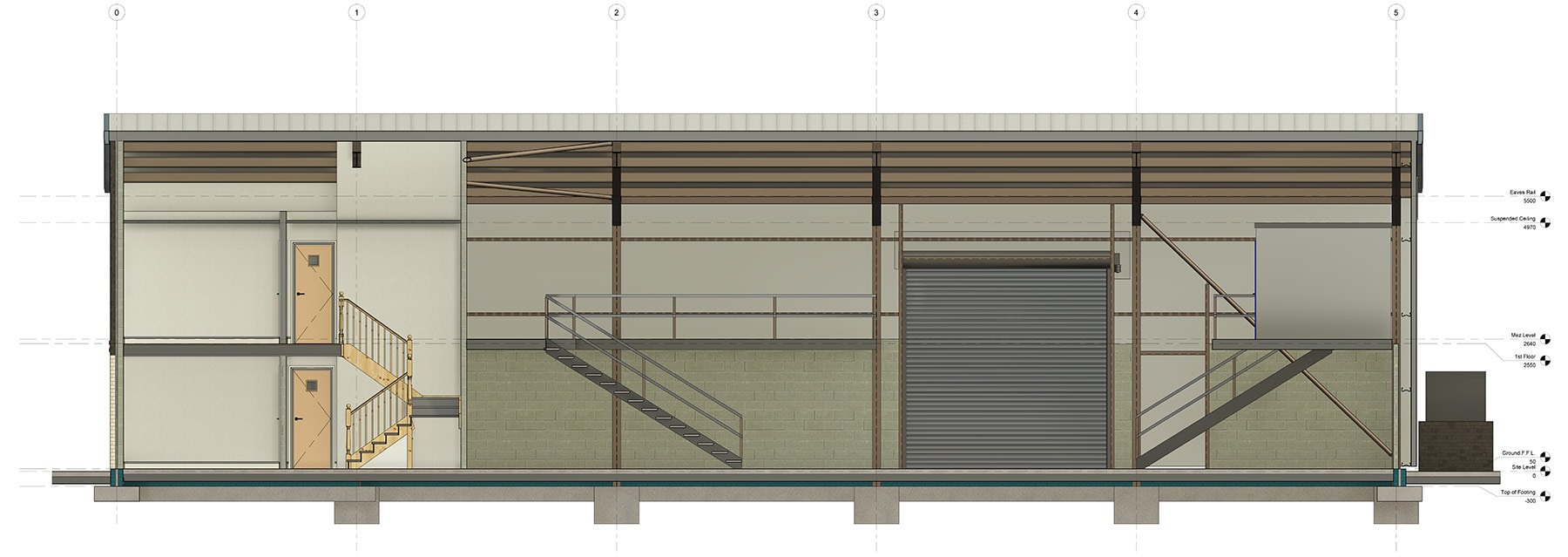

3d views, cross-sections, plans & schematics for your contractors, interior designer & building contractors
Drawings & street scenes for council approval signage & site storage if required

Factory Design Layouts

Factory Unit Layouts, new & existing. We have produced drawings for many of these over the years, food processing facilities & production lines. Usually working direct with the companies own engineers & factory production managers to maximise efficiency & use of all the buildings footprint. Some projects have been large taking over 18 months, others small industrial units for companies just starting out.

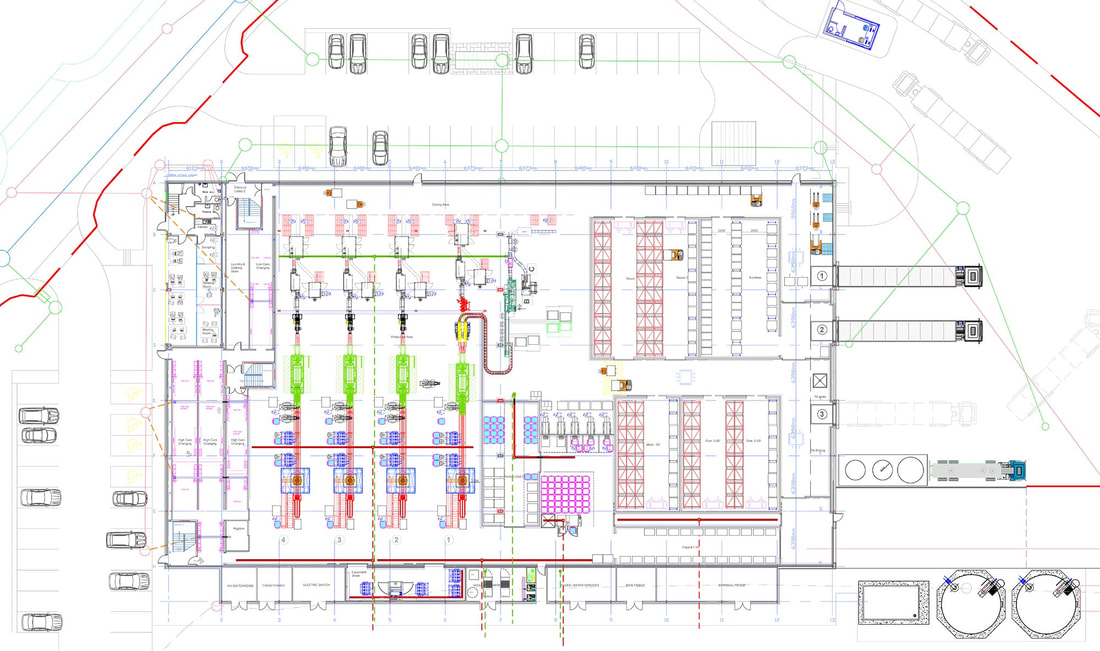

Food Production. A 4 line cooked meat slicing & packing facility

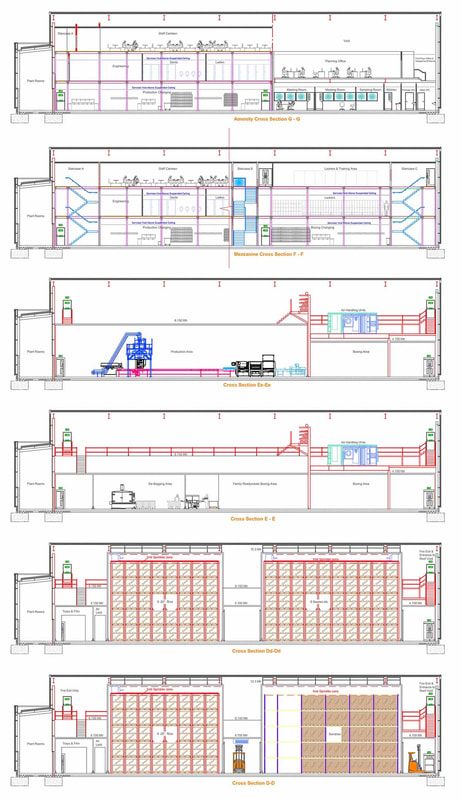

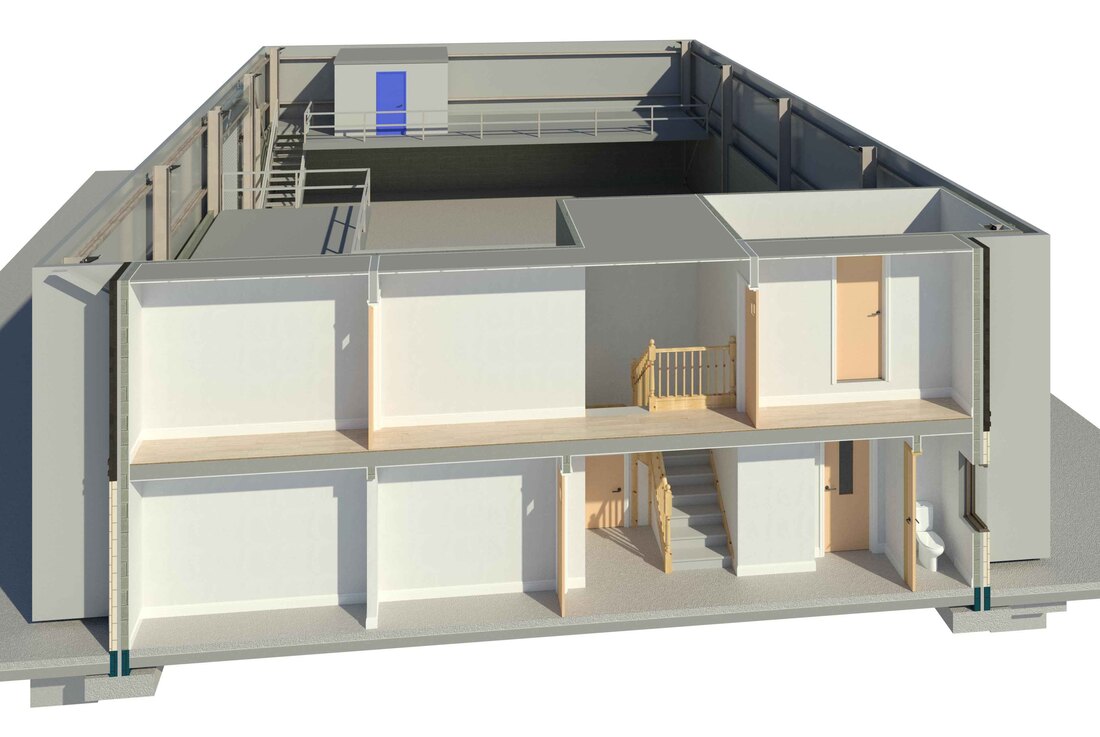

Commercial Building Layouts

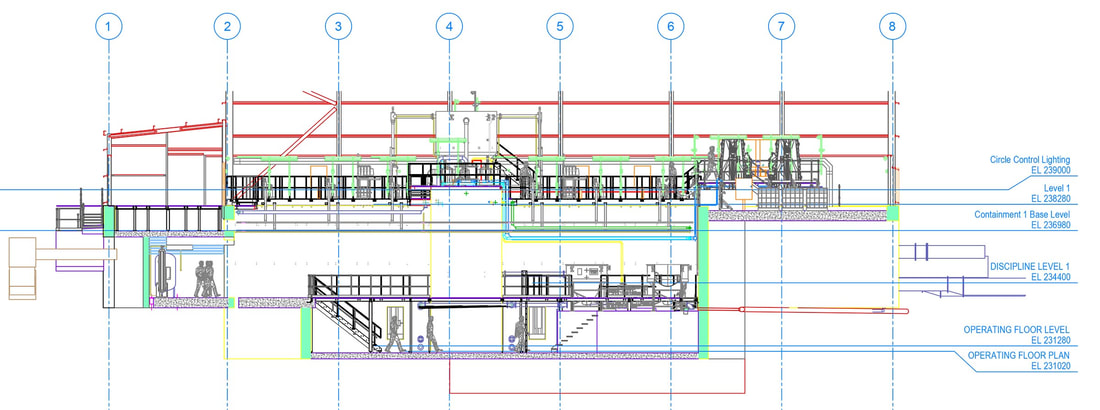

Below is a cross-section through a water treatment plant.
M.E.P. Mechanical, electrical & plumbing

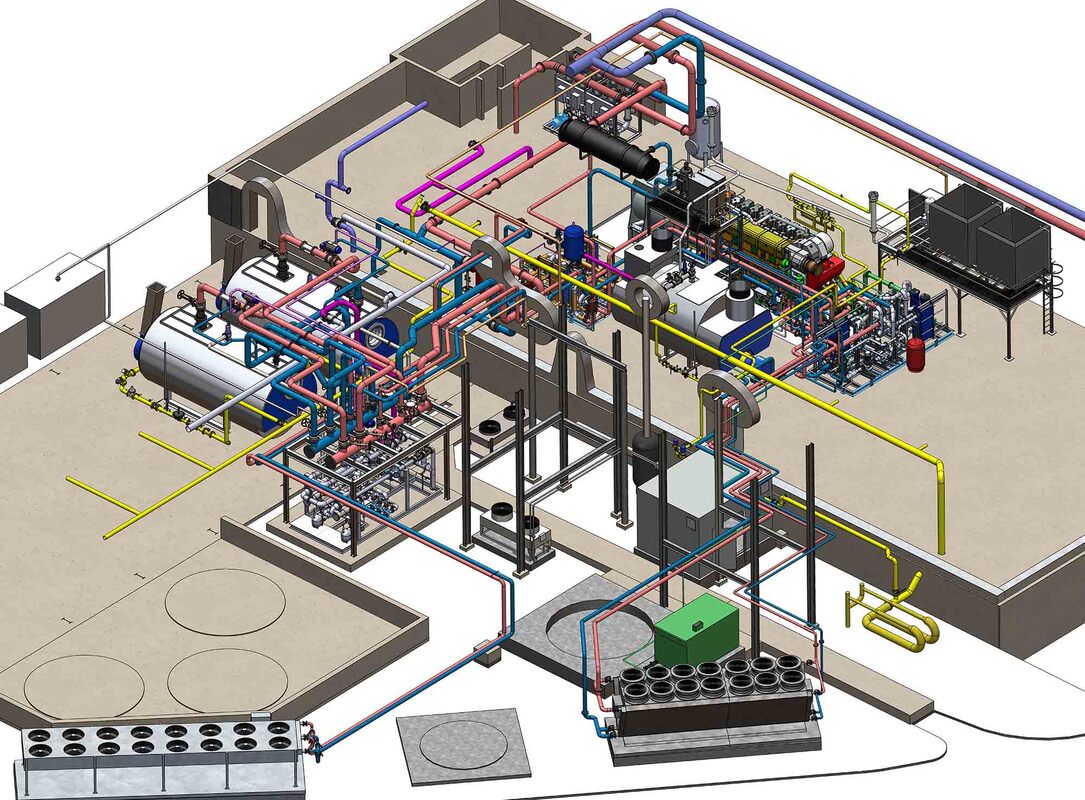

Below is another C.H.P. project Alderley Park Energy centre. We produced the 3d model below for the company installing all the new pipework.
C.H.P. Combined heat & power Alderley Park

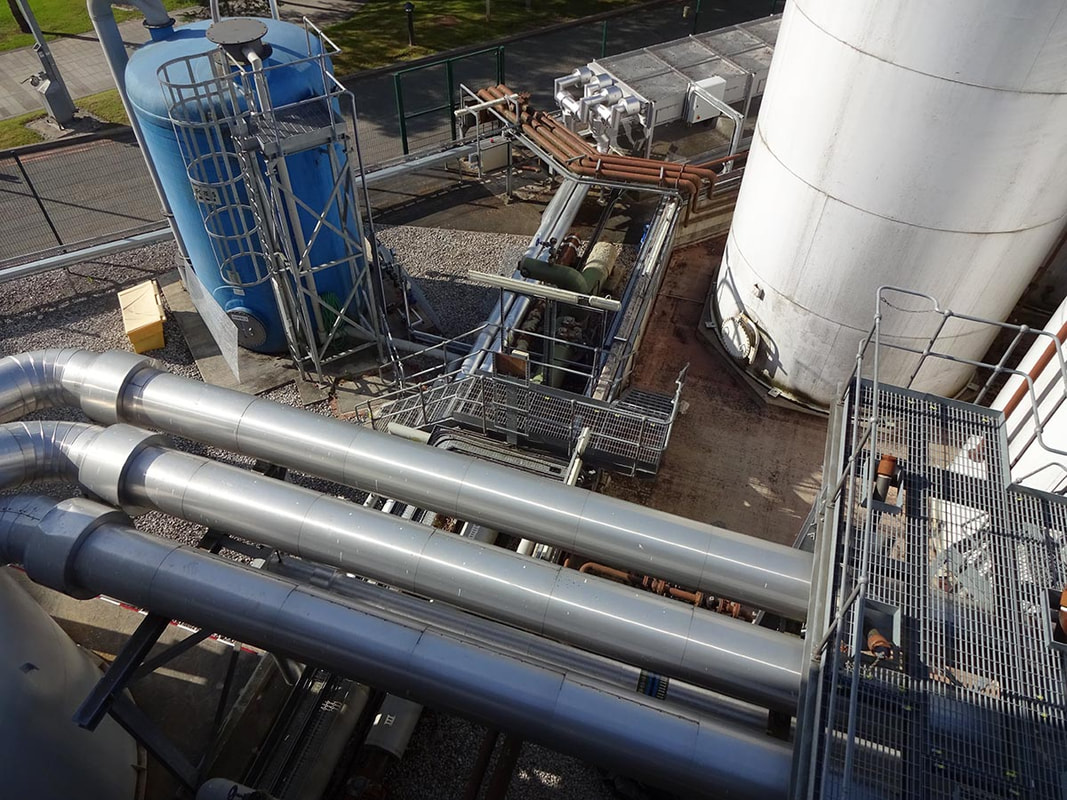

View from gantry. DAC chillers
If you would like to contact On Site Cad Services about your project please e-mail with a brief description of your requirements or use any of the contact methods below.

                             Thank you
Paul         CAD Technician
CAD Services: Mobile: 07541 313059   Brough: 01405 467886
Mon - Fri      9:00am - 5:00pm
